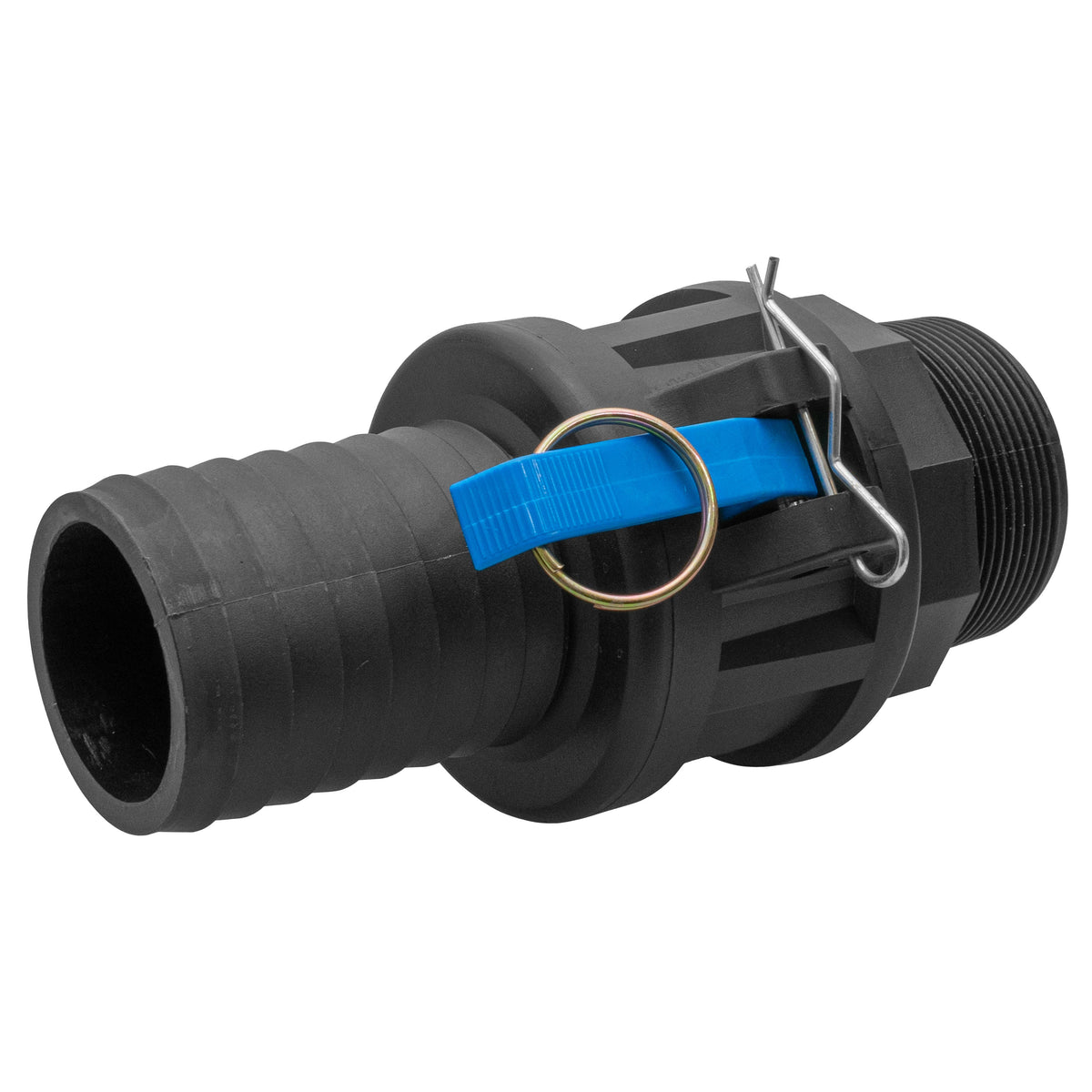

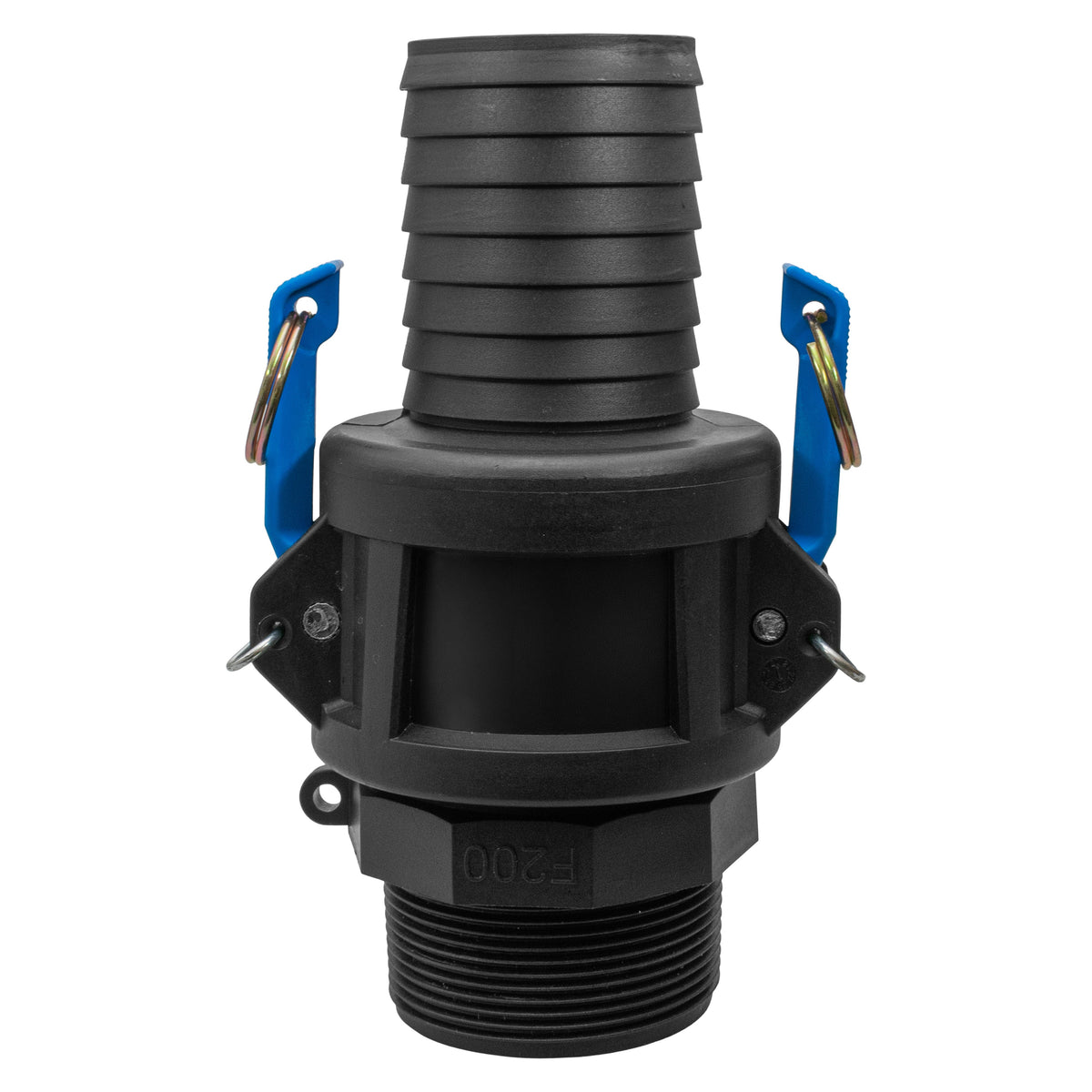

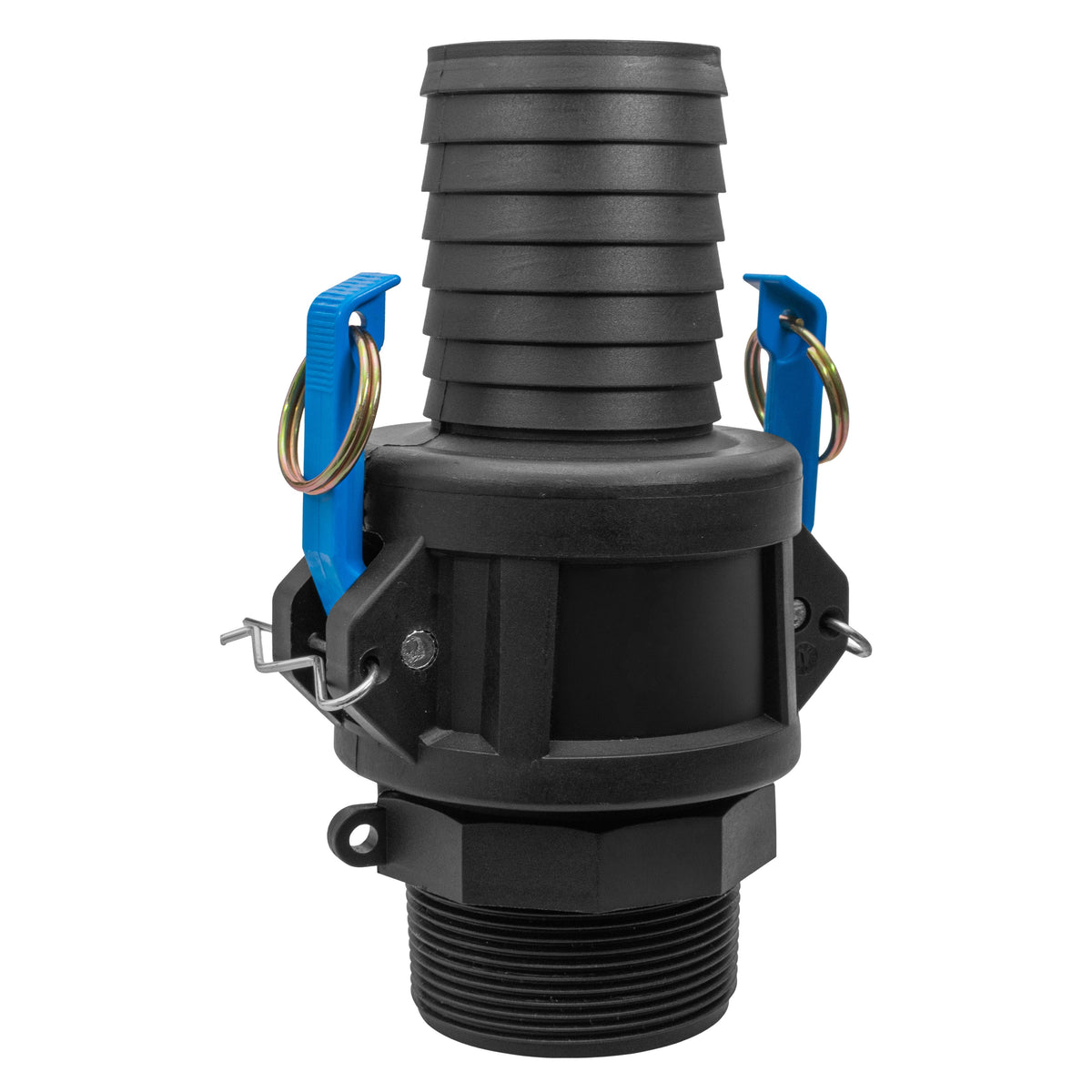

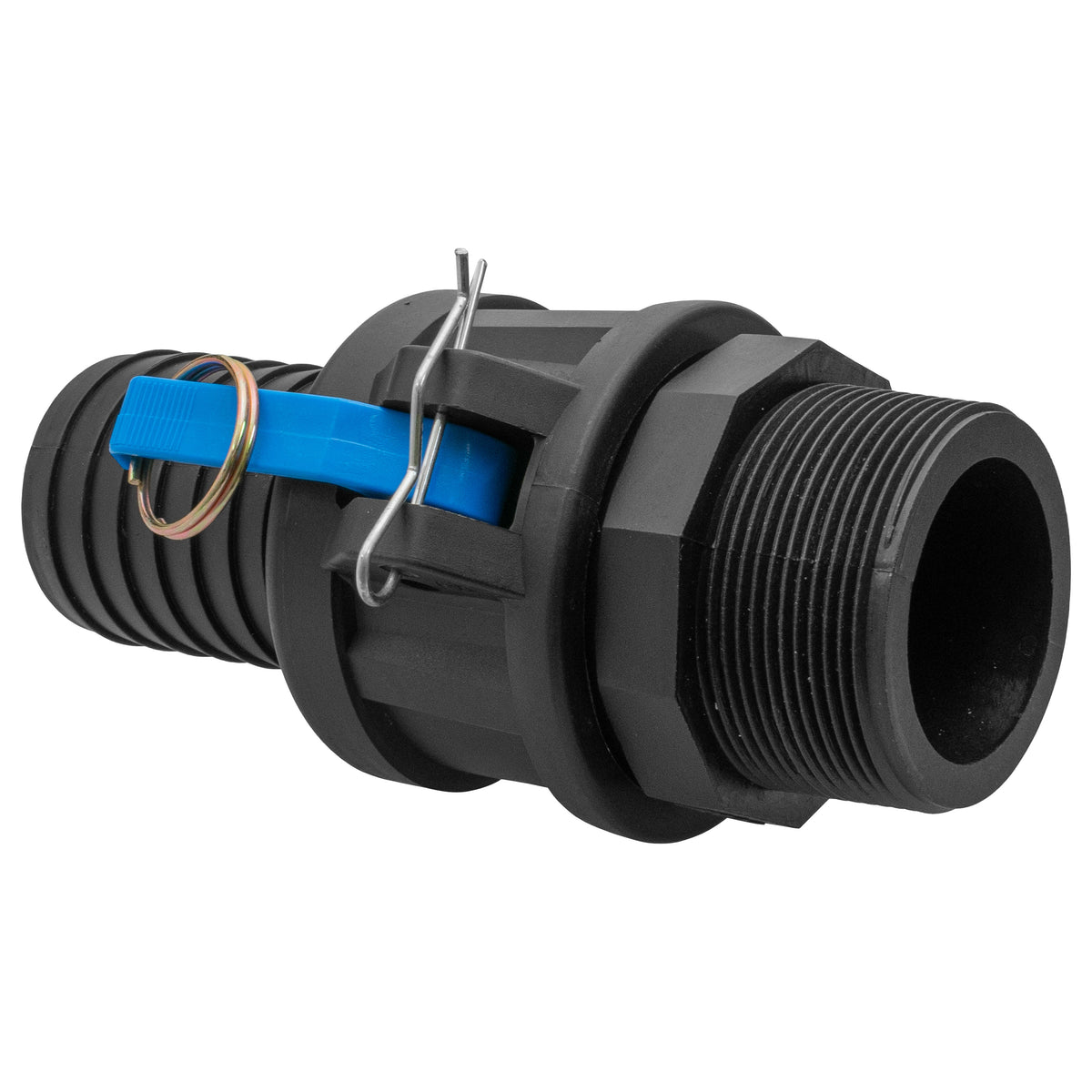

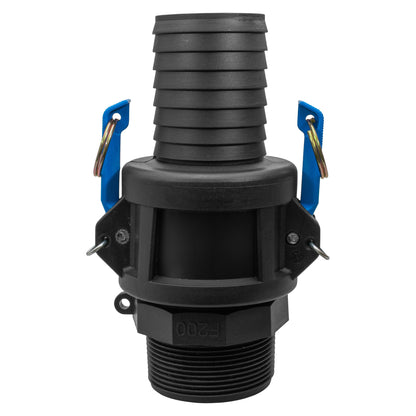

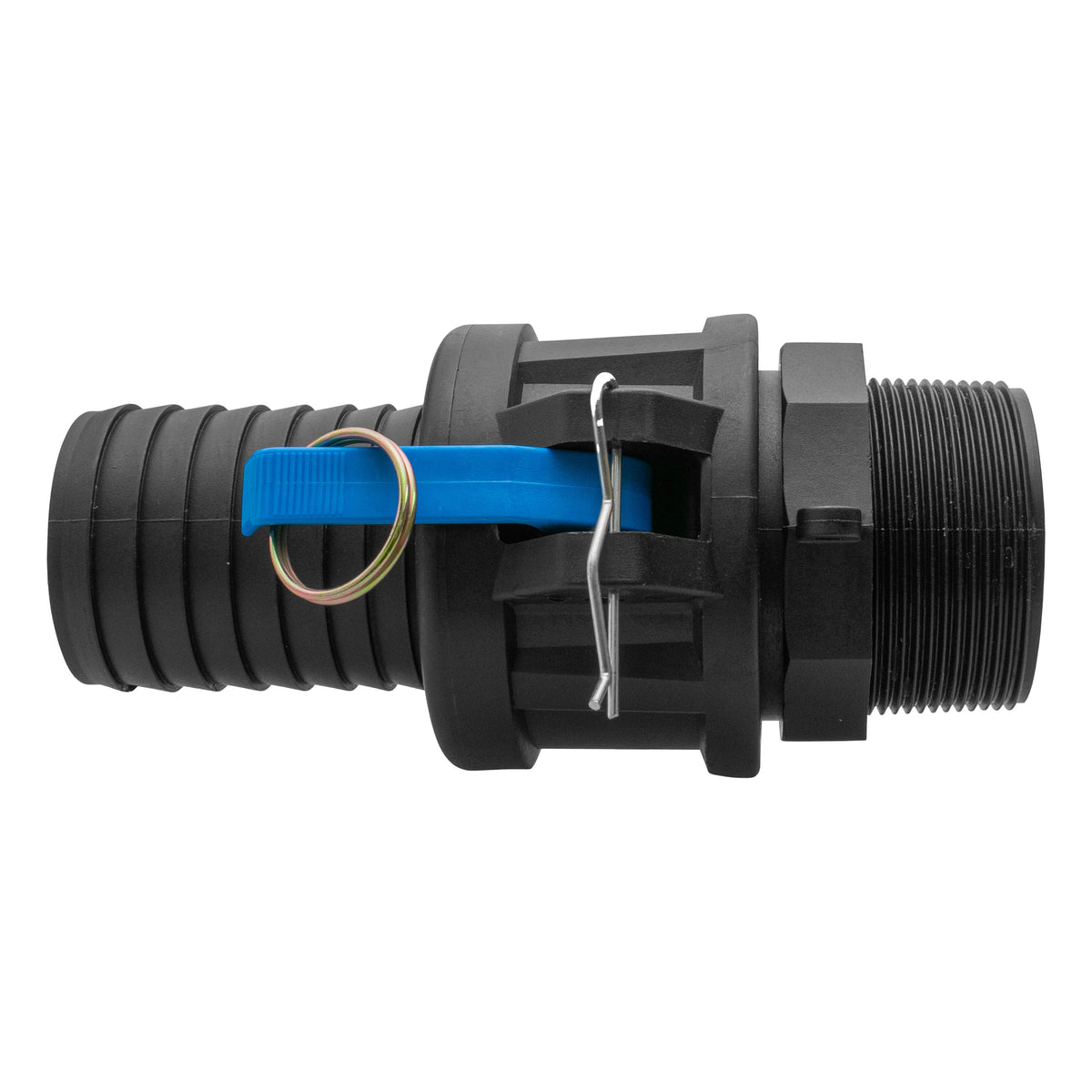

This kit includes a polypropylene Type F Camlock adapter and a matching-size Type C Camlock coupler, available in nominal sizes from 1/2" to 4". Both fittings share the same camlock dimension, ensuring the grove-ring on the Type F adapter locks perfectly into the cam arms of the Type C coupler.
The Type F adapter features a male cam-and-groove end and an integrated BSP male thread, making it ideal for screwing into tank outlets, pump ports or any female-threaded fitting. The Type C coupler offers a spring-loaded female cam-and-groove connection on one side and a hose-barb tail on the other, allowing you to push flexible hose onto the barb and secure it with a clamp.
To connect, first thread the Type F adapter into your vessel or system via its BSP male thread and secure it with the back nut and washer if required. Next, slide your hose onto the Type C barb and clamp it. Finally, retract the cam arms on the Type C coupler, insert the Type F groove-ring, and release the arms to lock in place. This tool-free operation creates a reliable, leak-proof seal and transforms a rigid, threaded outlet into a quick-disconnect hose line—ideal for filling, draining, spraying or fluid transfer tasks.
By matching camlock size to thread and barb diameter, this kit guarantees seamless compatibility and a watertight connection every time. Always confirm that polypropylene is suitable for your intended fluid and temperature conditions.
