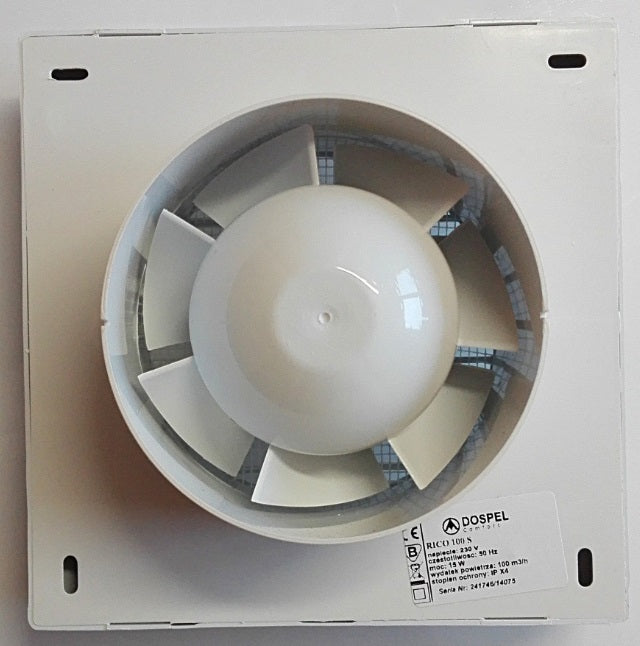

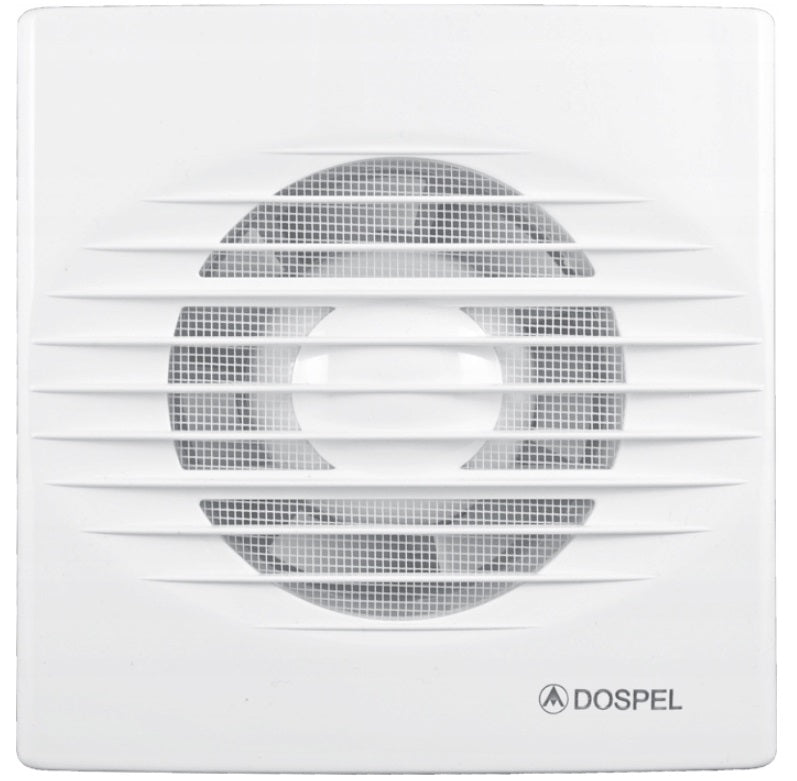

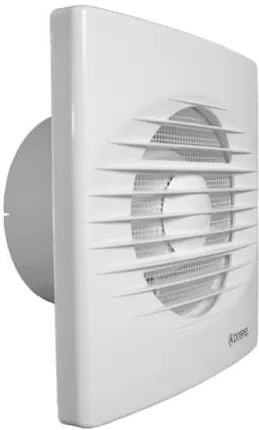

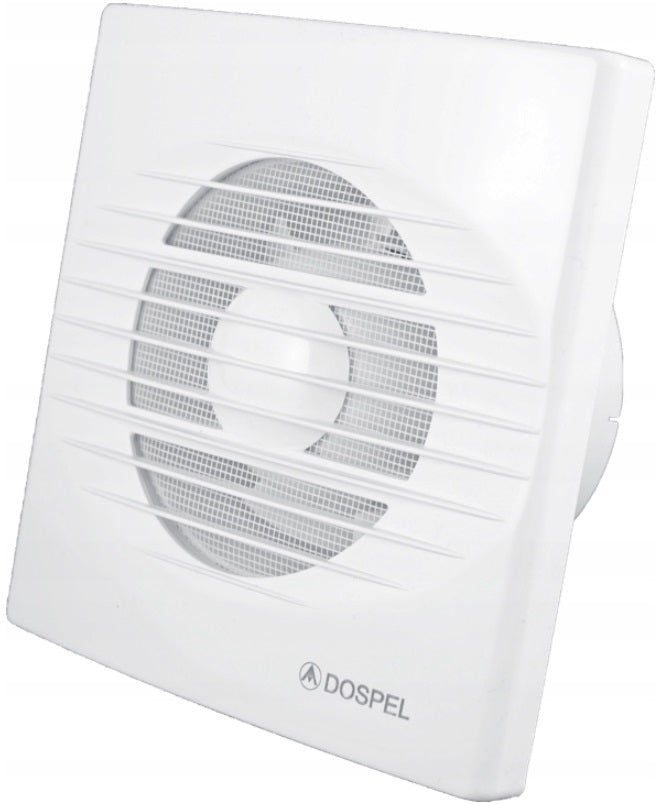

This Rico 100 mm Pull-Cord Axial Fan is engineered from white ABS plastic to deliver efficient, unobtrusive ventilation in homes, offices or light-industrial spaces. Its compact, wall- or duct-mounted design blends seamlessly with any interior décor while providing reliable air extraction at the pull of a cord.
Rated IPX4 for protection against water splashes and Class II insulated for enhanced electrical safety, it’s built for low-maintenance, continuous operation. A robust pull-cord switch allows simple on/off control without additional wiring, while sleeve bearings ensure smooth, quiet performance. The high-speed motor (2 650 rpm) draws just 0.12 A at 15 W, making it energy-efficient and dependable up to 40 °C ambient.
Key Features & Performance
Size: 100 mm diameter for easy integration into standard ductwork.
Pull-cord control: Built-in cord switch for straightforward on/off operation.
Airflow: 100 m³/h at 0 Pa static pressure.
Static pressure: 34 Pa (3.47 mm H₂O) maximum.
Acoustic level: 40 dB(A) at typical operating point.
Motor specs: 2 650 rpm, 15 W power consumption, 0.12 A current draw.
Protection: IPX4 splash-proof rating.
Insulation: Class II—no earth connection required.
Bearing type: Sleeve bearings for quiet, low-maintenance operation.
Temperature rating: Reliable performance up to 40 °C ambient.
