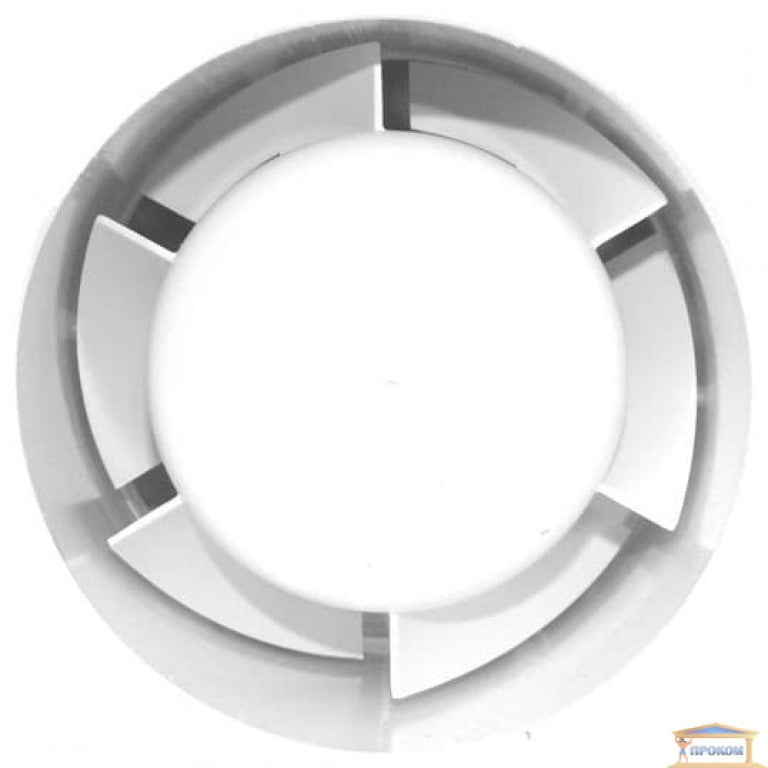

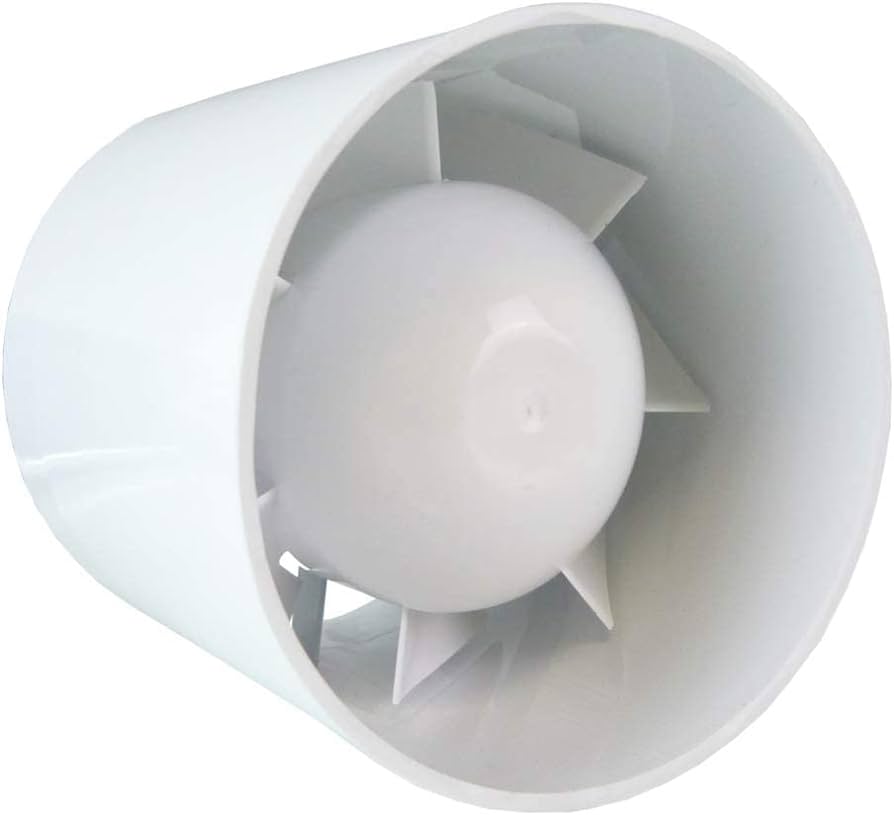

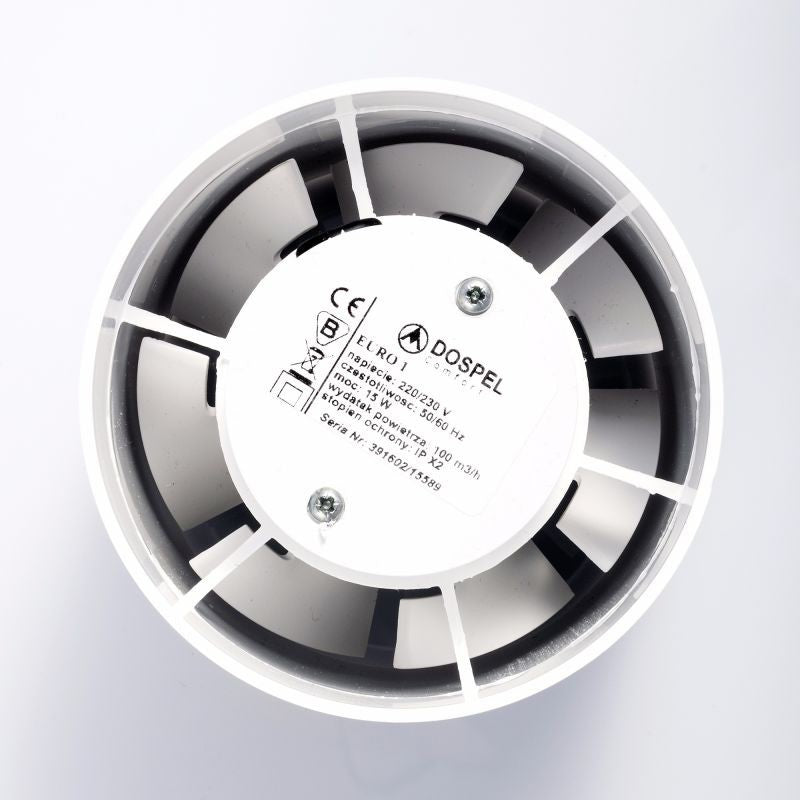

This 100 mm axial fan by Dospel is expertly crafted from white ABS plastic to deliver efficient, unobtrusive ventilation in residential, office or light-industrial settings. Its compact design blends seamlessly into ductwork or wall-mounted housings, ensuring optimal air quality without compromising décor.
Rated IPX2 against dripping water (up to 15° tilt) and Class II insulated for enhanced safety, it’s built for reliable, continuous operation. Sleeve bearings provide smooth, quiet performance, and a high-speed motor (2 650 rpm) draws just 0.12 A at 15 W, making it energy-efficient and dependable up to 40 °C ambient.
Key Features & Performance
Size: 100 mm diameter for straightforward integration into standard ducting.
Construction: UV-stable, impact-resistant ABS plastic for lasting performance.
Ingress protection: IPX2 drip-proof rating.
Electrical safety: Class II insulation—no earth connection required.
Bearing type: Sleeve bearings for low-maintenance, quiet operation.
Airflow: Up to 50 m³/h at 0 Pa static pressure; 30 m³/h at 20 Pa.
Static pressure: Maximum shut-off around 50 Pa.
Acoustic level: Approx. 40 dB(A) at typical operating point.
Motor specs: 2 650 rpm, 15 W, 0.12 A.
Temperature rating: Reliable performance up to 40 °C ambient.
