13A Switched Socket White, 1 Gang, 2 Gang & USB

General Specifications

• Product Type: Switched Wall Socket
• Available Variants: 1 Gang, 2 Gang, 2 Gang with USB
• Mains Current Rating: 13A
• Voltage Rating: 250V AC
• Colour: White
• Socket Standard: UK 3-Pin

Variant 1: 1 Gang Single Pole Socket

• Gang: 1 Gang
• Switching: Single Pole
• Switch Type: Rocker Switch
• Dimensions: 86 × 86mm
• Terminal Identification: L / N / E
• Faceplate: Square Profile with Rounded Outer Corners

Variant 2: 2 Gang Double Pole Socket

• Gang: 2 Gang
• Switching: Double Pole, Rocker Action
• Standard: BS 1363-2
• Dimensions: 146mm W × 86mm H
• Recommended Minimum Wall Box Depth: 25mm
• Terminals: Angled with Captive Screws
• Earthing: Twin Earth Terminals

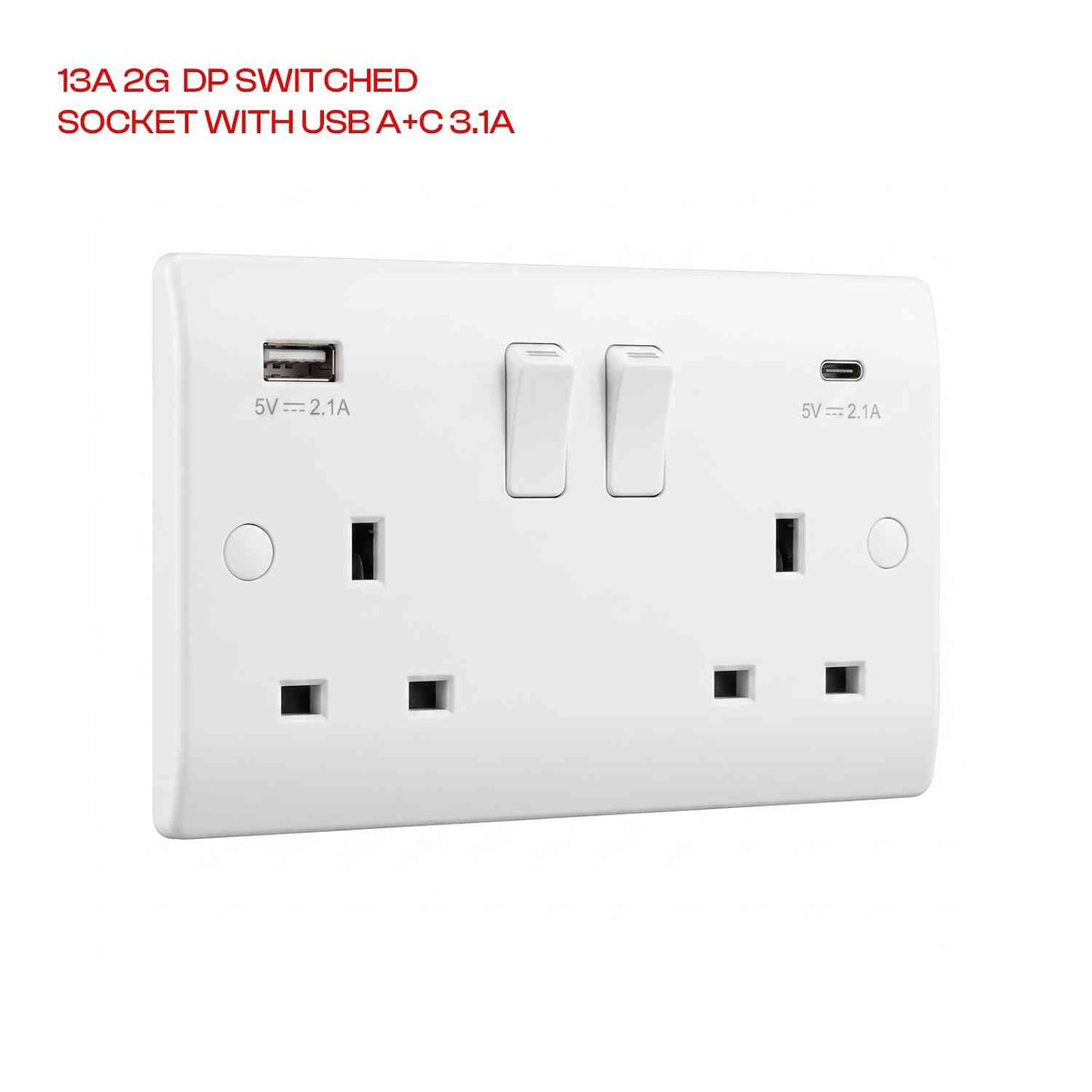

Variant 3: 2 Gang Socket with USB-A & USB-C

• Gang: 2 Gang
• Switching: Double Pole, Rocker Action
• Mains Rating: 13A, 250V AC
• USB Ports: 1 × USB-A, 1 × USB-C
• USB Output: 5V, 3.1A Total Shared Output
• Faceplate Dimensions: 146 × 86mm
• Recommended Minimum Back Box Depth: 25mm
• Earthing: Twin Earth Terminals
• Standards: BS 1363-2, BS EN 62368
• Safety Features: Internal Safety Shutters and Child Protection

Package includes one switched socket
